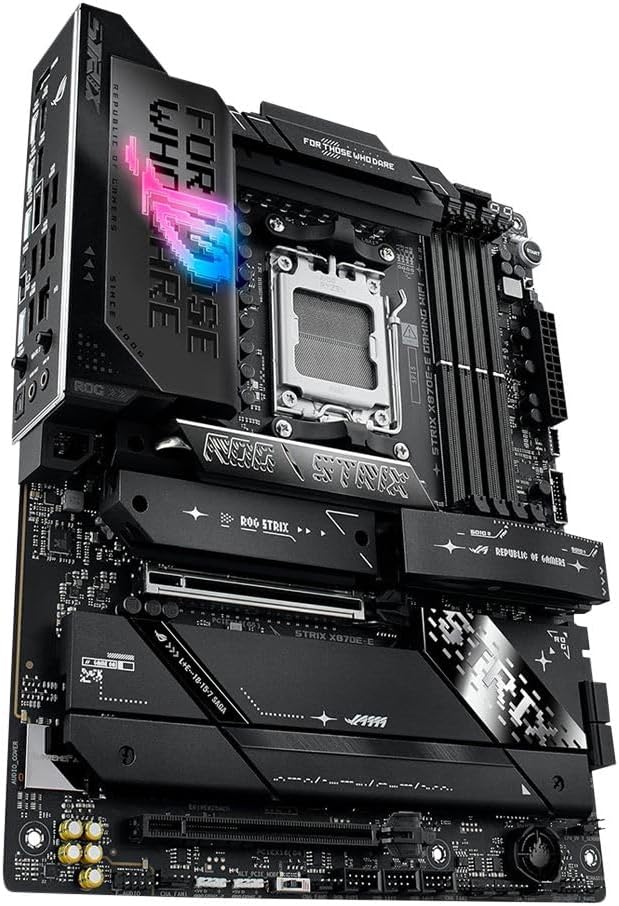

ASUS X870E-E ROG Strix Gaming R2/USBC Card WiFi 7 (802.11be) LAN 100/1000/2500/5000Mbps AMD AM5 ATX Motherboard

Key Features and Benefits:General SpecificationsPackaging: RetailChipset: AMD X870EBIOS: 256Mb AMI UEFI BIOSManageability: WOL, PXECPU Support: AMD Ryzen (Socket AM5 for Ryzen 9000, 8000 & 7000 Series Desktop Processors)Memory Specifications:ECC: Non-ECC, Non-Registered (supports On-Die ECC function)Memory Type: DDR5Memory Speeds Supported: Up to 8000+ MHz (OC) (with Ryzen 9000 Series; higher with specific series like 8400+ MT/s on 8000 Series)Memory Slots: 4 x 288-pin DIMMMemory Channel Support: Dual ChannelMax Memory Supported: 256GBMaximum Memory Supported Per Slot: 64GBVideo Specifications:Onboard Graphic Chipset: Requires CPU with Integrated GraphicsStorage Specifications:M.2 Port Type: 2242 / 2260 / 2280 / 22110M.2 Slots: 5 x M.2 Socket 3 (M key)SATA: 4 x SATA 6Gb/sRAID Support: RAID 0, RAID 1, RAID 5, RAID 10Audio Specifications:Audio Chipset: ROG SupremeFX ALC4080Audio Channels: 7.1Networking:LAN Chipset: Realtek 5Gb EthernetLAN Speed: 100/1000/2500/5000 MbpsWireless Technology: Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax, Bluetooth 5.4Expansion Slots:PCI Express 5.0 x16: 1 (SafeSlot, supports x16 mode with Ryzen 9000/7000 Series)PCI Express 4.0 x16: 1 (supports x4 mode via chipset)Back Panel Ports:LAN Ports: 1 x RJ-45 (5Gb)Audio Ports: 1 x 3.5 mm Line-In, 1 x 3.5 mm Line-Out (plus others for 7.1)Specialty Ports: 2 x WiFi Antenna PortsUSB Ports: 2 x USB4 (Type-C 40 Gb/s), 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 9-10 x USB 3.2 Gen 2 Type-A (varies slightly by config)Video Connectors: 1 x HDMI 2.1Digital Audio: 1 x Optical S/PDIF OutInternal I/O & Connectors:Headers: 1 x Water Pump Header, 2 x CPU Fan Header, 5 x System Fan HeaderUSB Headers: 3 x USB 2.0 Headers (6 ports), 2 x USB 3.2 Gen 1 Headers (4 ports), 1 x USB 3.2 Gen 2x2 Type-C Header (1 port)Other I/O: 3 x Addressable Gen 2 LED HeadersPower:Power Connectors: 1 x 24-pin ATX, 2 x 8-pin +12V (ProCool II)Physical Specifications:Depth: 12.00 in. (304.80 mm)Width: 9.61 in. (244.00 mm)Form Factor: ATXWarranty: 3 Years Limited (Parts & Labor)Package Contents: Motherboard, 2x SATA Cables, Thermal Pad for M.2, Antennas, Cable Ties, M.2 Q-Latch and Slides, ROG Key Chain, ROG Strix Stickers, 5x M.2 Rubbers, PCIe to Front USB Type-C Card

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics
• High-end AMD X870E chipset with full support for Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, delivering top-tier performance and future-proofing
• Blazing-fast DDR5 memory support up to 8000+ MHz (OC), with 4 DIMM slots for a maximum of 256GB (64GB per slot) in dual-channel configuration
• Extensive storage options including 5 x M.2 slots (PCIe 5.0/4.0 compatible, 2242/2260/2280/22110 sizes) plus 4 x SATA 6Gb/s ports, with RAID 0/1/5/10 support
• Premium ROG SupremeFX ALC4080 audio with 7.1-channel output, paired with Realtek 5Gb Ethernet and cutting-edge Wi-Fi 7 (802.11be) + Bluetooth 5.4 for ultra-fast, low-latency connectivity
• Advanced expansion with one PCIe 5.0 x16 SafeSlot and one PCIe 4.0 x16 slot, plus robust power delivery featuring dual 8-pin +12V connectors and ProCool II design
• Loaded rear I/O including 2 x USB4 (40 Gb/s Type-C), USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 Gen 2 Type-A ports, HDMI 2.1, and 5Gb LAN for maximum connectivity
• Packed with enthusiast features like 3-year warranty, M.2 Q-Latch system, addressable RGB headers, onboard fan/pump headers, and a rich accessory bundle including antennas, thermal pads, ROG keychain, and more
