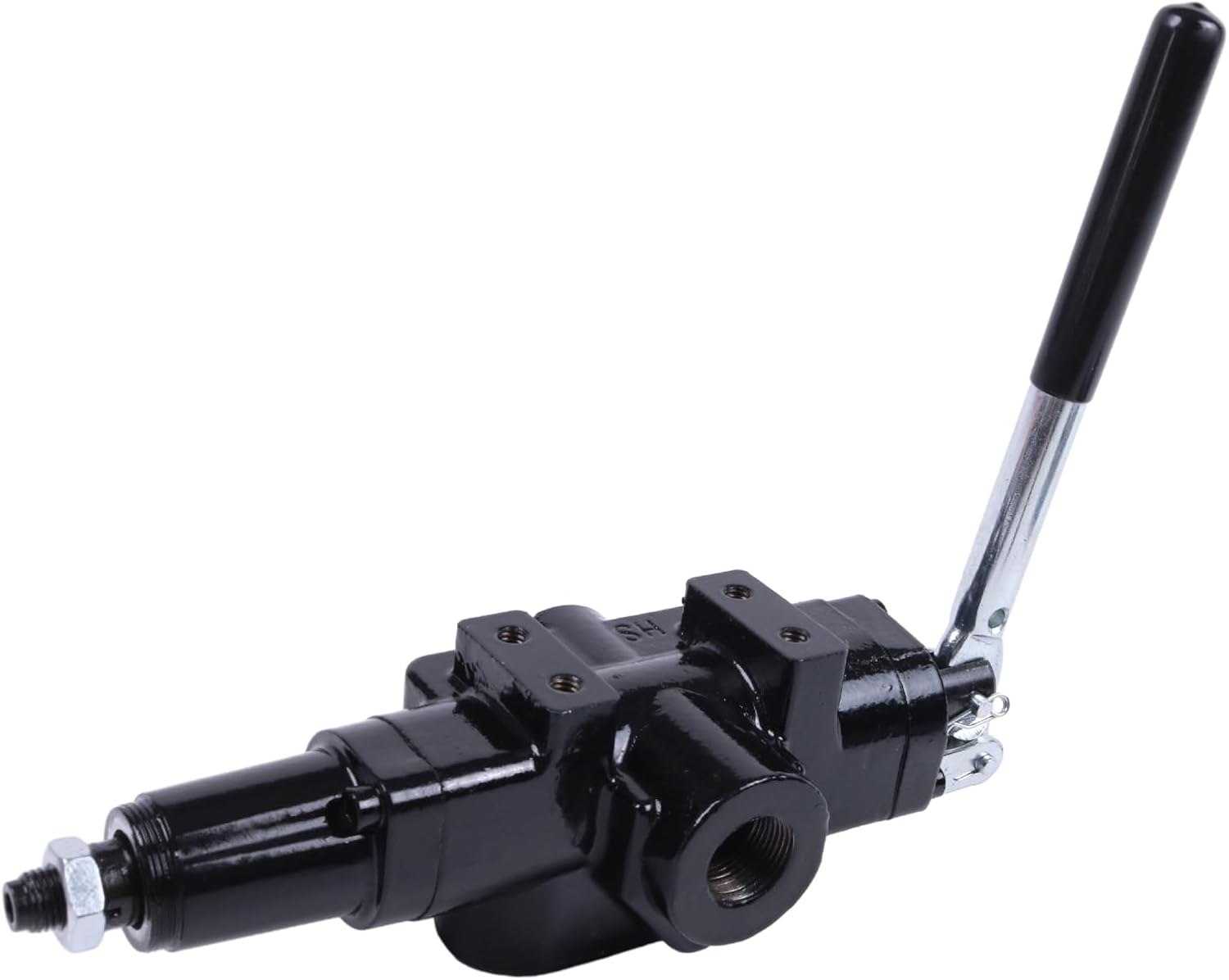

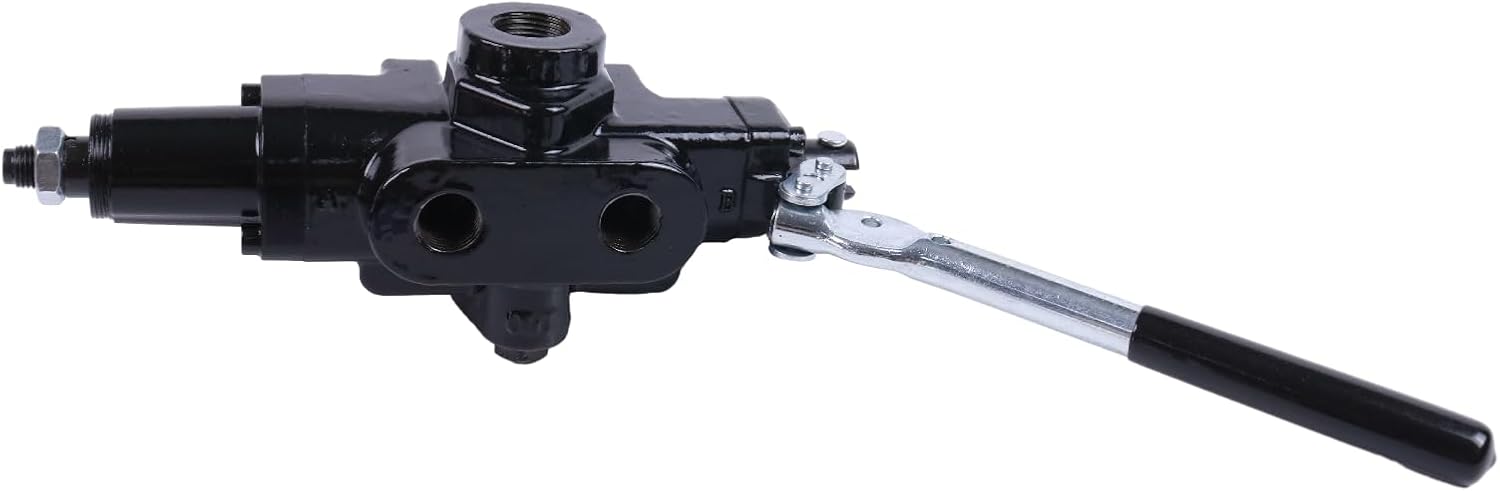

ZTUOAUMA 1 Spool 25GPM 3500PSI Reverse Port Configuration Log Splitter Hydraulic Valve Adjustable Detent C5 Compatible with Ariens Countyline Cub Cadet Energy SpeeCo Huskee and Most Log Splitters
4.1 (70 items)
Limited Time Sale$53.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 227164879 | Release Date | 2026/05/09 | List Price | $35.60 | Model Number | 227164879 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Part Number: C5 LVA1-95N21A5
- Application Models: Universal for Ariens Champion Countyline Cub Cadet Energy SpeeCo Huskee and Most More Log Splitters
- Specifications: Single Spool; Open Center; Max Pressure: 3500psi; Working Port: 1/2'' NPT; Inlet/Outlet Port: 3/4'' NPT; Relief Valve Pressure: 3000psi Set (Adjustable); Detent Pressure: 700psi Set (Adjustable, screw off the end cap to adjust); Threaded Mounting: 5/16''-18; Mounting Bracket Holes: 1'' x 2-5/8'' (center to center)
- Features: This C5(LVA1-95N21A5) has opposite sides of inlet and outlet ports with G5(LVA-95NA7), it is newer upgraded version of common log splitter valve, with reverse port config and adjustable detent, made of high-strength cast iron, provide longer and durable service on your log splitter.
- Instruction: Two-Way Actuation; Press Forward and Release Handle to Return Valve to Neutral; Press Rearward and Let Go of Handle to Let the Ram Auto-Return to the Starting Position
| ASIN | B0CQC9PR3R |
|---|---|
| Size | 5x10x5 inches |
| Set Name | Log Splitter Valve Set |
| Brand Name | ZTUOAUMA |
| Unit Count | 1.0 Count |
| Valve Type | spool valve |
| Thread Size | 5/16 inches |
| Thread Type | Coarse Thread |
| Manufacturer | ZTUOAUMA |
| Model Number | C5 |
| Material Type | Cast Iron |
| Item Type Name | Hydraulic Valve |
| Exterior Finish | Cast Iron |
| Item Dimensions | 10 x 5 x 5 inches |
| Number of Ports | 3 |
| Maximum Pressure | 3500 Pound per Square Inch |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | Threaded |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | LVA1-95N21A5 |
